CY-70809426 Scy-16101 PRO Brand New Brushless Four-Wheel Drive Bigfoot High-Speed Car RC off-Road RC Model Professional Racing Boy Toys
| Item No.: | CY-70809426 | QTY/CTN: | 8PCS |
| MOQ: | 24PCS | Gender: | Unisex |
| Battery: | 7.4V 1500mAH Li Battery | Color: | Red/Green |

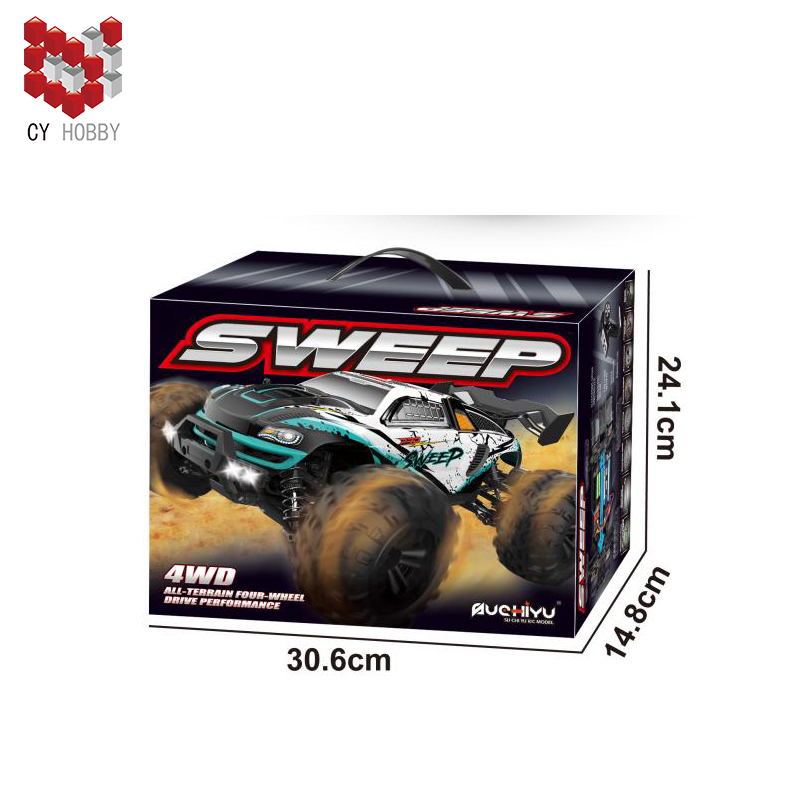

| Packing Size | 30.6*14.8*24.1 CM | Carton Size | 61.5*31.5*50 CM |
| Packing List: | |||
| 1) Complete vehicle; 2) Remote control; 3) instructions in both Chinese and English; 4) Lithium batteries; 5) USB balance charging; 6) Tail fins; 7) Head wheel; 8) Shock absorption adjustment buckle; 9) Metal latch; 10) Screwdriver; 11) hexagonal sleeve; 12) Brushless guide inserts | |||
| Brushless motor | 2847 Brushless motor (4000 KV value) | Body weight | 1000g |
| Electrical modulation/reception | 35A 2S Integrated control (splash proof) | Remote control weight | 180g |
| Steering gear | Three wire 17G digital steering gear | Including package weight | 1700g |
| Headlight configuration | LED headlight | Wheelbase parameters | Wheelbase: 185mm; Wheelbase: 188mm; Wheel diameter :85mm; |
| Differential speed structure | Planetary gear differential (metal) | Function of protection | Charge protection, jam protection, high temperature protection, low voltage protection |
| Note: 1: Charging protection: constant current and constant voltage balanced charging, the battery overcharge, overcurrent protection function. 2: Motor anti-jam protection: when overload work, the motor stops working. 3: High temperature protection: when the working temperature is higher than the setting, the drive control circuit stops working, and the temperature drops to the safe value before resuming work. 4: Low voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, prevent the battery overdischarge and damage. |
|||

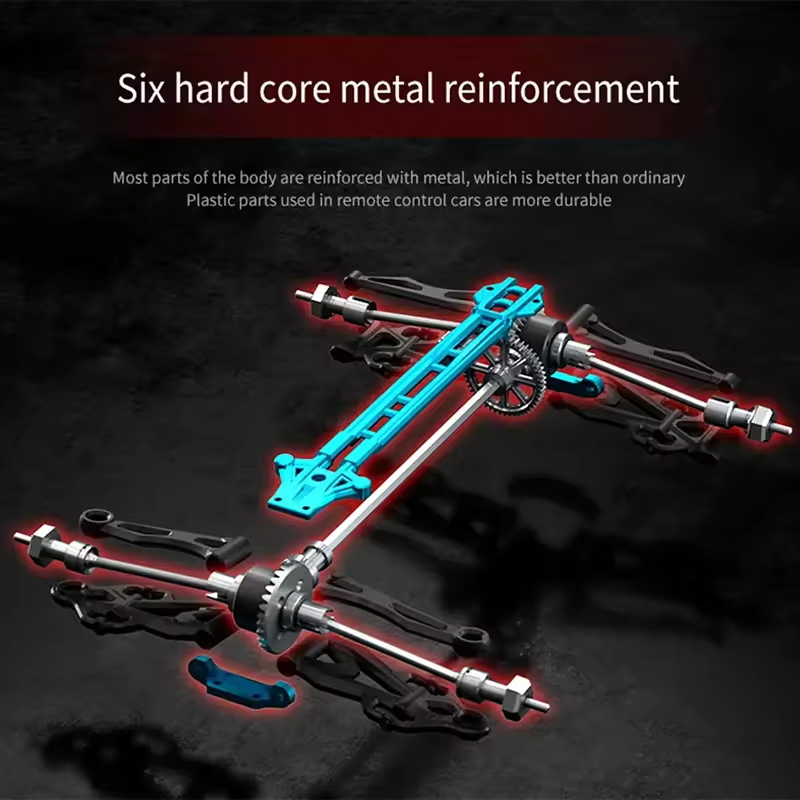

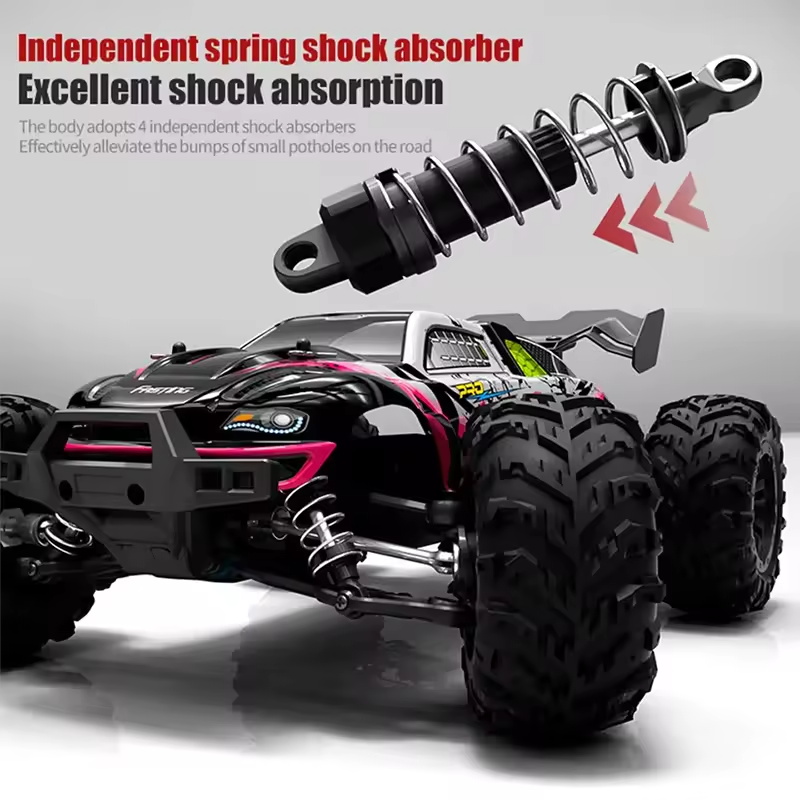

| Product parameter configuration | 1, the use of simulation structure design, with real car control feeling, to achieve full proportion of stepleless transmission, high speed driving, sharp acceleration, deceleration, braking, reverse, left turn, right turn; 2, applicable site: flat, sand, mud, grass. 3, four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system; 4, 2.4G full proportional synchronous remote control system. Full proportional throttle/steering; 5, metal differential, metal differential cup, powder planetary gear, powder drive gear, powder main gear; 6, metal CVD front drive shaft, metal back dog bone, metal wheel cup; 7. Three-line 17G digital steering gear; 8, 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C; 9, added remote control panel function: rudder size adjustment; 10, the whole car adopts 16 ball bearings; 11, metal second floor, metal front and rear arm code, metal drive shaft; 12, the car shell adopts high toughness explosion-proof PVC car shell; 13, equipped with LED headlight; (Three-gear mode: constant light, slow flash, flash); 14, equipped with head wheel; 15, simulation big foot tire, strong grip; |
||
